Background

Most entities that process HIPAA transactions have a database engine on their premises. Some of the most commonly used are Microsoft SQL Server, Oracle, IBM, and the open-source MySQL. Though the HIPAA Claim Status Checker application does not come with a database, it can link to any Open Database Connectivity (ODBC) or Object Linking and Embedding Database (OleDB). This component is available as an add-on license.

HIPAA Claim Status Checker uses two database tables:

oA header table: EDI_ClaimStatusHeader.

oA detail table: EDI_ClaimStatusDetail.

Scripts are provided to create these tables for some database types. You might have to modify the scripts to suit your Structured Query Language (SQL) language.

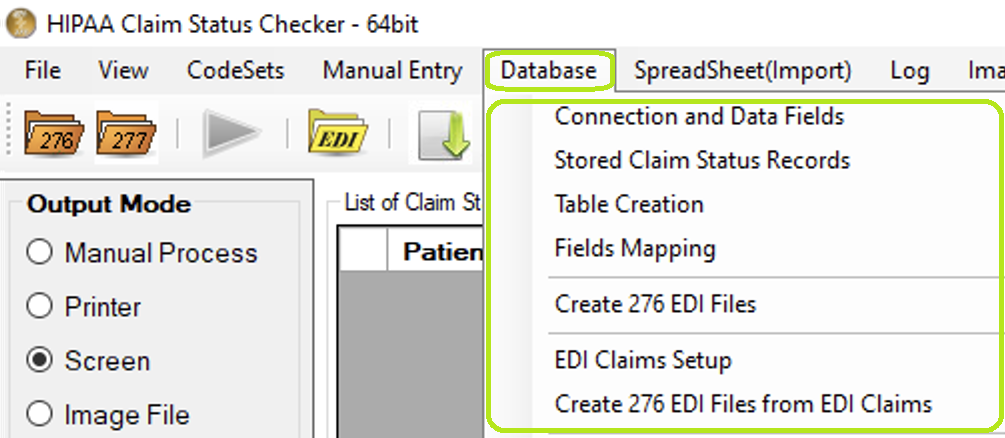

The "Database" tab and options in the main window.

The sequence of actions to configure the data import is the following:

oSetting up Database Connection

oCreating Tables

How is EDI data imported to the Database?

The HIPAA Claim Status Checker application provides the "Data Import" option. This allows the user to import the claim data to a database while printing or imaging claims (see Processing an Electronic Claim and Printing Electronic Claims). Under "Screen" mode, data import does not work since this can interrupt the viewing of EDI Claims at any time; this might lead to incomplete data import.

Note: The image file will be created based on the pre-defined settings. Read more in Doing Image Setup.

5.2 csc data import option

The "Data Import" check-box is in the main window.

The data is imported and written to the database once the user clicks on the "Run" button and only if the "Data Import" box is checked.

The "Processing Results" window will display a notification about the data import.

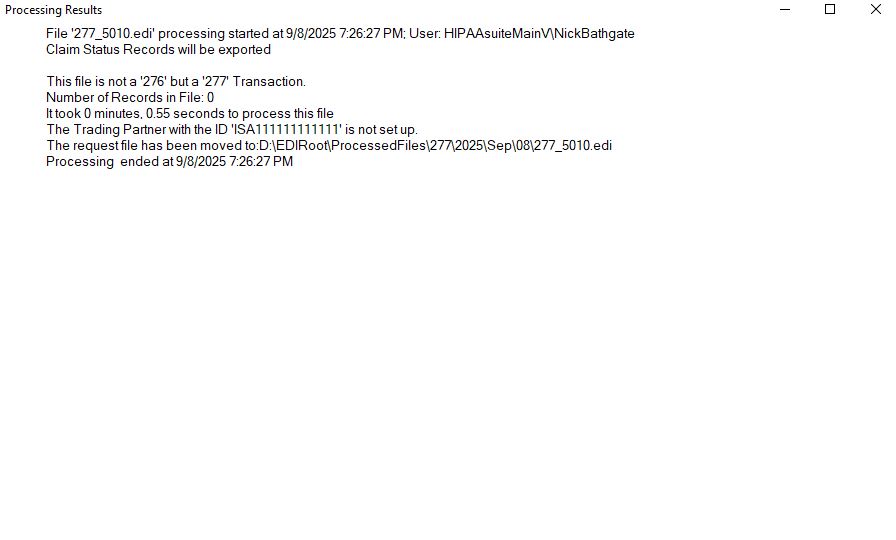

The "Processing Results" window after importing to the database.

After this message, the user can now browse imported data.
