Creating Image Files from EDI Files

Navigation:  Creating Image Files and PDFs >

Creating Image Files from EDI Files

 Previous pageReturn to chapter overviewNext page

You can create image files manually or automatically using the command line arguments and Windows Scheduler. See more in Using Command Line Arguments (CLI) and Running the Application via Task Scheduler. Follow the steps below to create image files from EDI files manually:



1.Go to File > Open for a single file or to File > Open Directory for multiple files as seen below (see Processing a Payment Record and Processing an Entire Directory.)

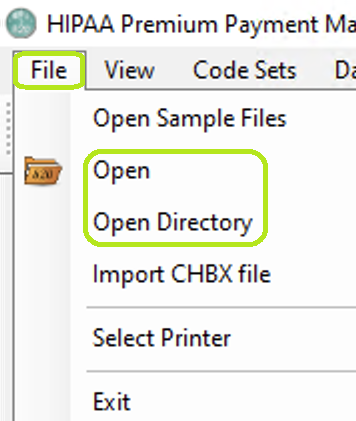

The "Open" and "Open Directory" options are under the "File" tab on the main menu.

The "Open" and "Open Directory" options are under the "File" tab on the main menu.



6.2 ppm open document

The "Open File" icon is in the Taskbar.



2.Select the "Image" option as the "Output Mode."



The "Image File" mode.

The "Image File" mode.



3.Click the "Run" button.

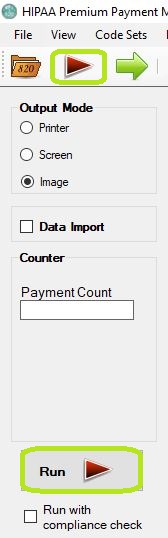

The "Run" button options in the main window.

The "Run" button options in the main window.



4.The "Processing Results" window will pop-up and display the report. You can find the TIFF or PDF files in the specified folder.

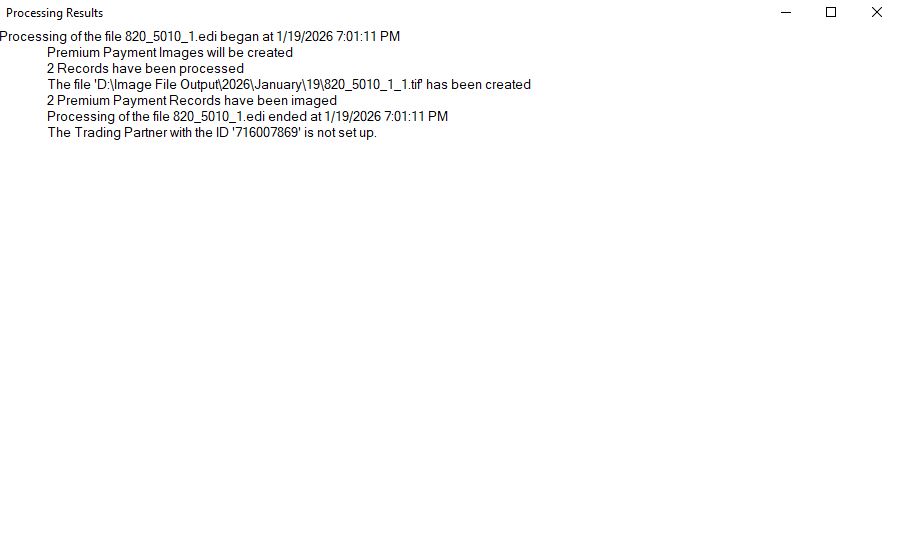

The "Processing Results" window.

The "Processing Results" window.

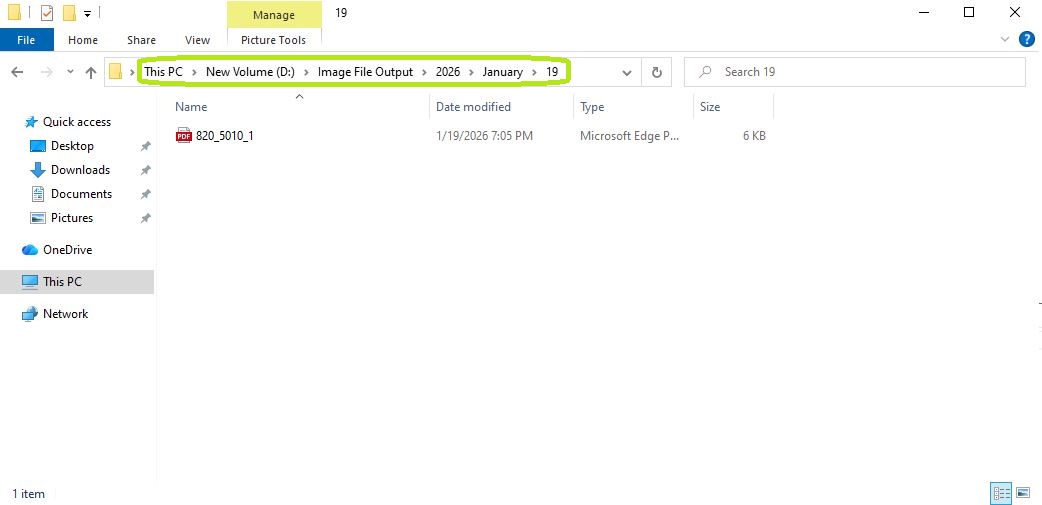

The "Image File Output" folder is where images can be found.

The "Image File Output" folder is where images can be found.
