Most entities that process HIPAA transactions have a database engine on their premises. The most commonly used are Microsoft SQL Server and the open-source MySQL. Though the HIPAA Eligibility Responder application does not come with a database.
HIPAA Eligibility Responder uses nine database tables:
oA request header table: EDI_EligRequestHeader.
oA request details table: EDI_EligRequestDetail.
oA response header table: EDI_EligResponseHeader.
oA response members table: EDI_EligResponseMembers.
oA response benefits table: EDI_EligResponseBenefits.
oA request validation table: EDI_EligRequestValidation.
oA covered members table: EDI_CoveredMembers_Audit.
oA covered benefits table: EDI_CoveredBenefits_Audit.
oA covered plans table: EDI_CoveredPlans_Audit.
Scripts are provided to create these tables for some database types. You might have to modify the scripts to suit your Structured Query Language (SQL) language.

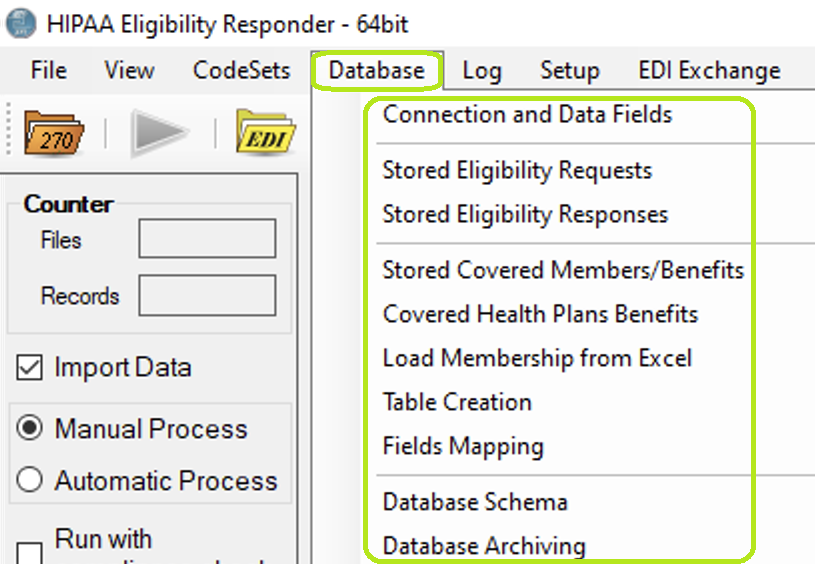

The "Database" tab and options in the main window.
The sequence of actions to configure the data import is the following:
oSetting up Database Connection
The HIPAA Eligibility Responder application provides the "Import Data" option. This allows the user to import 270 EDI files to a database. Under "Screen" mode, data import does not work since this can interrupt the viewing of EDI Benefit Request files at any time; this might lead to incomplete data import.
The "Import Data" check-box is in the main window.
The data is imported and written to the database once the user clicks on the "Run" button and only if the "Import Data" box is checked.
The "Processing Results" window will display a notification about the data import.

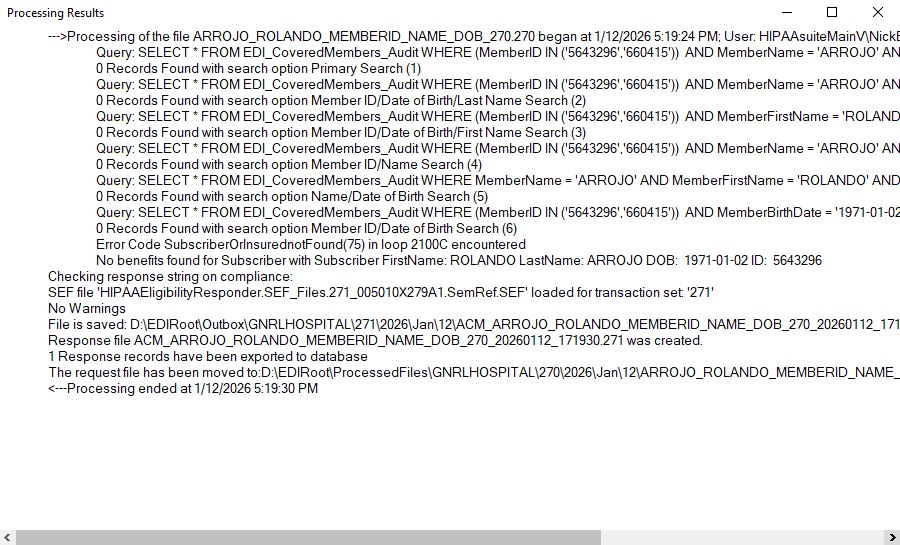

The "Processing Results" window after importing to the database.
After this message, the user can now browse imported data.
